Bespoke Garden Rooms

DESIGN AND CONSTRUCTION

Initial Site Visit

During the Initial Site Visit, a ground work assessment will be made and the required specifications gathered

At this point, any potential Planning Restrictions will be highlighted

Typical Specifications

Required Size

Door & Window Requirements

Porch Requirements

Internal Layout (Stud Walls)

Additional Wiring (Click For Details)

Heating Installation

Design & Modeling

A detailed Computer Aided Design model of the Garden Room is constructed

This ensures any potential design problems are identified early and rectified

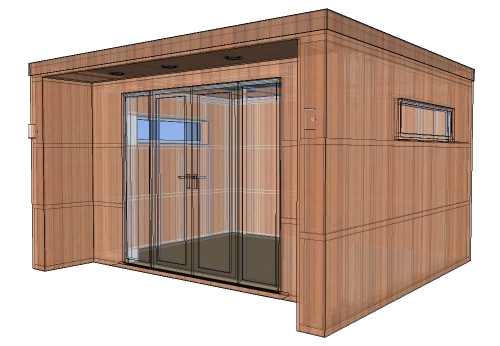

CAD Model

Click To See The Model

Construction Documentation

The CAD Model is used to produce a complete set of detailed construction documents and a full list of required materials

At this point, a personalised quotation is created containing the model and photo-realistic renders of the Garden Room that will be constructed

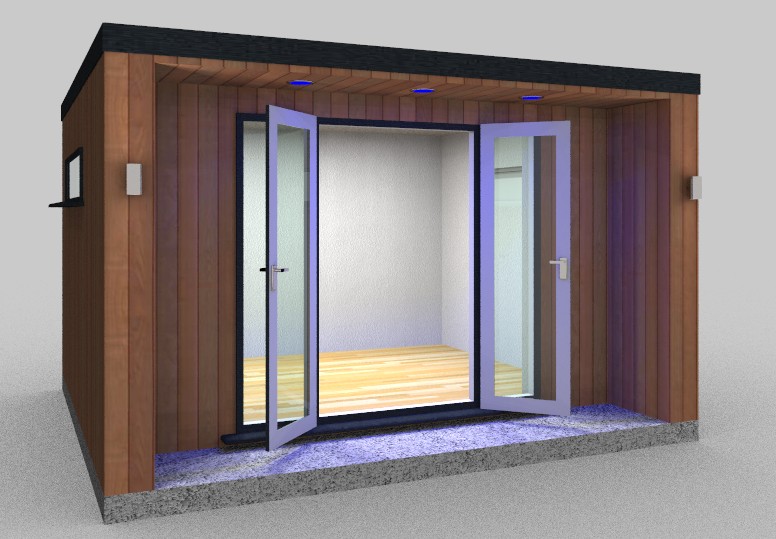

Example Render

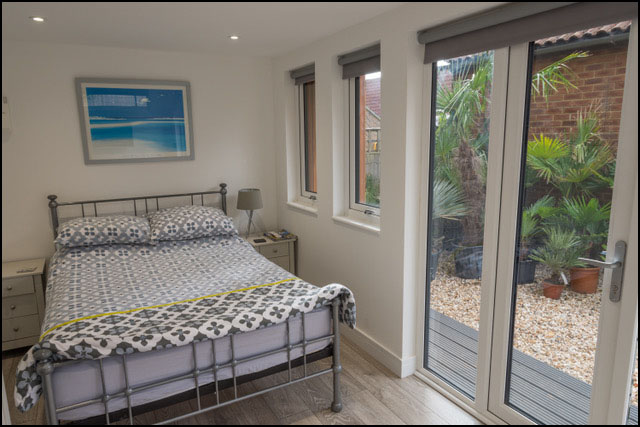

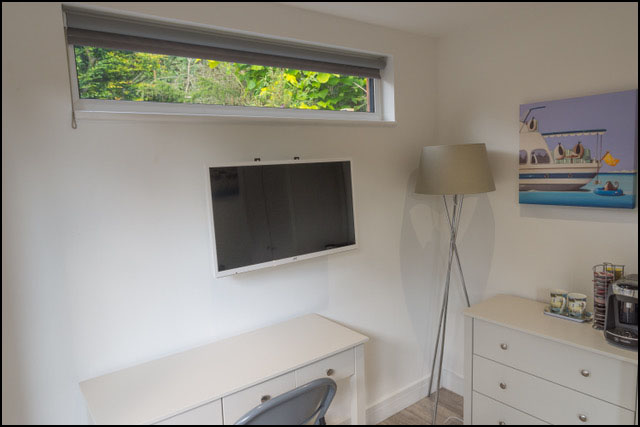

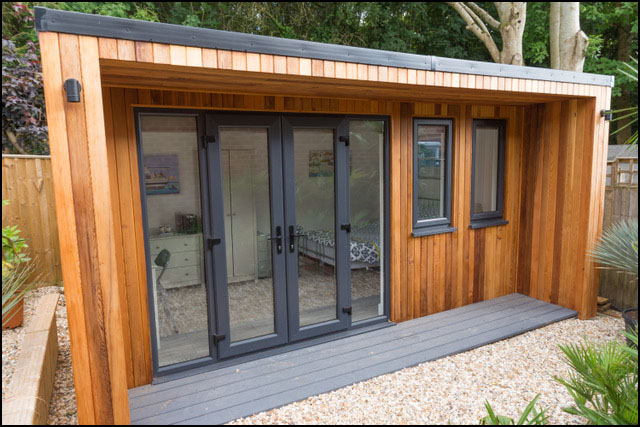

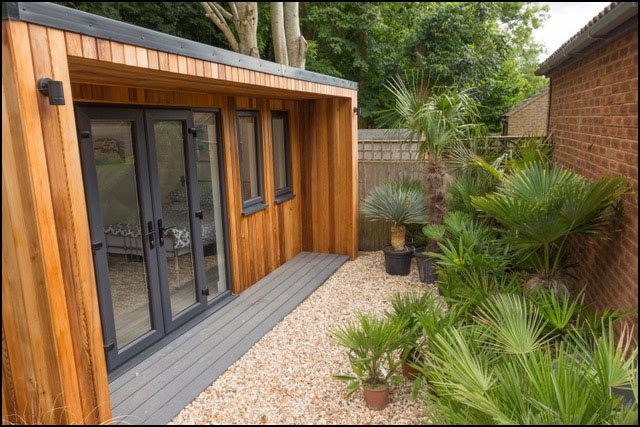

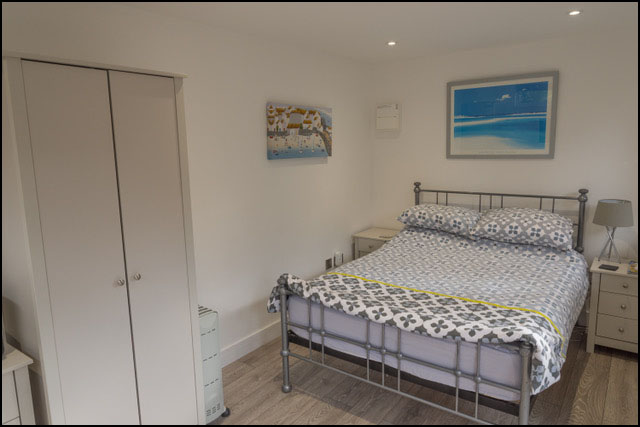

Example Garden Room

Build Process

Because every Outdoor Lifestyle Innovations Garden Room is unique, no prefabricated parts are used. The building is constructed on site from scratch.

The slideshow opposite provides an overview of what you can expect to see as your new Garden Room takes shape

Overview

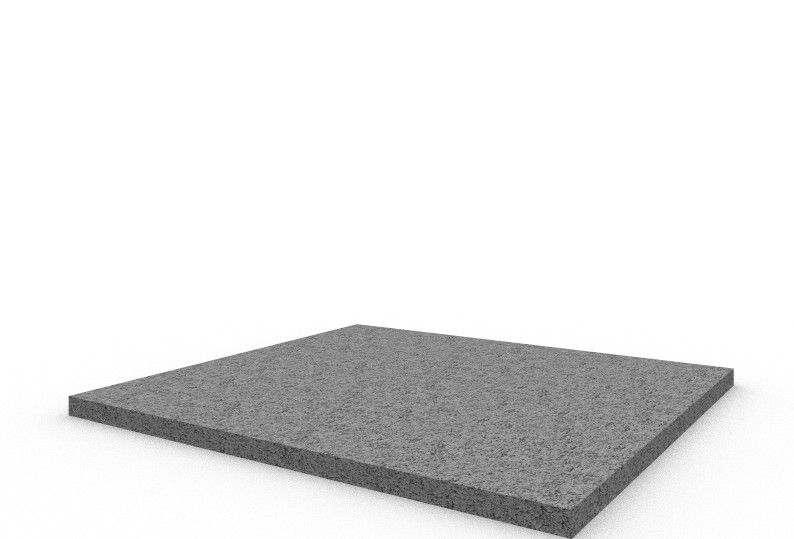

Ground Works and Concrete Base Laid

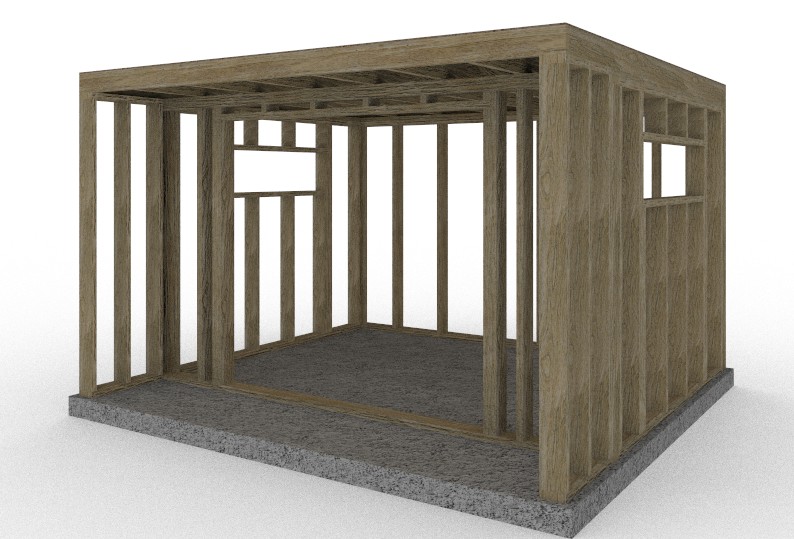

Wall & Roof Framing Is Constructed

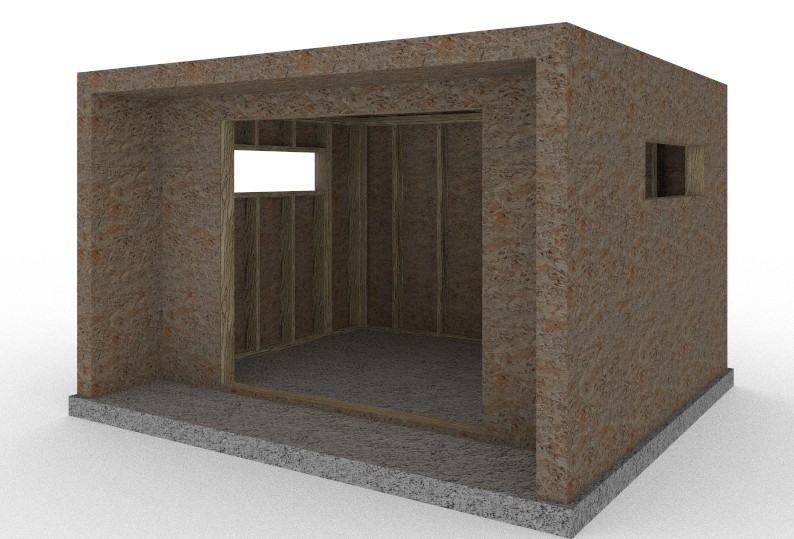

Outer Walls Are Lined With Oriented Strand Board (OSB)

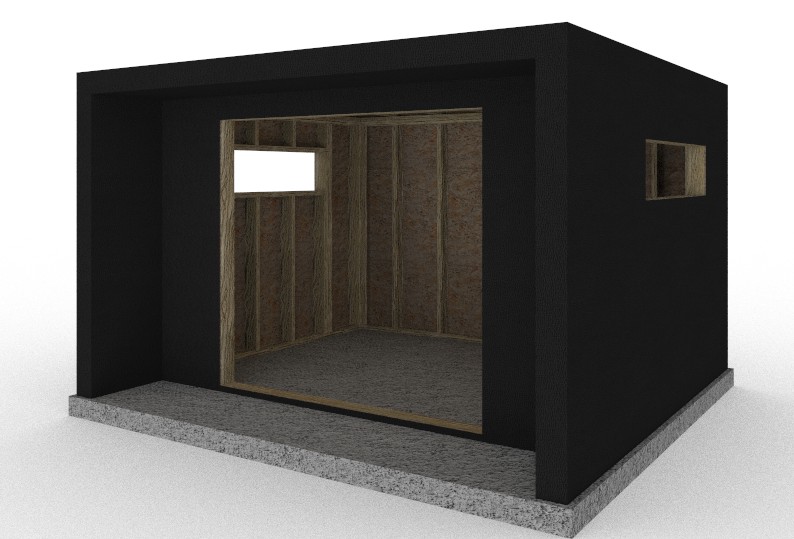

Outer Walls Are Covered With A Weatherproof Breathable Membrane

Wood Batons Are Applied To The Outside To Support The Cedar Cladding

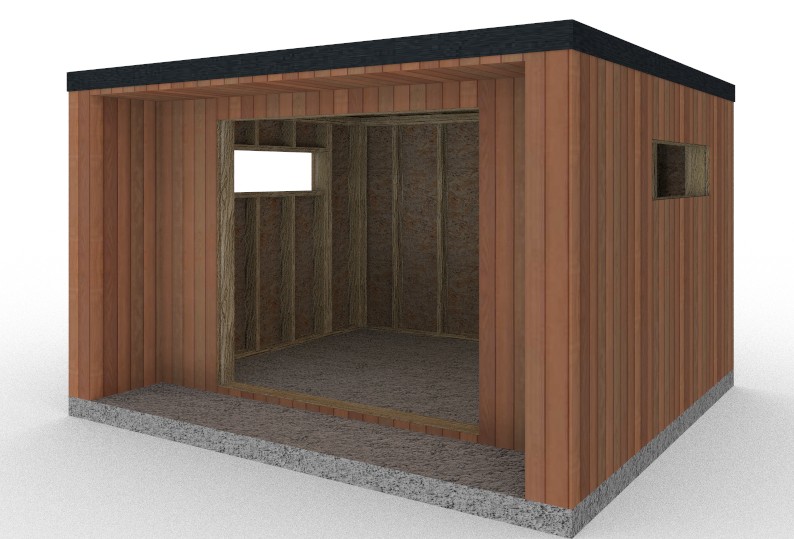

Cedar Cladding Is Applied & EPDM Roof Installed

UPVC Doors & Windows Are Fitted

Celotex™ Insulation Is Fitted To Ceiling, Walls & Floor

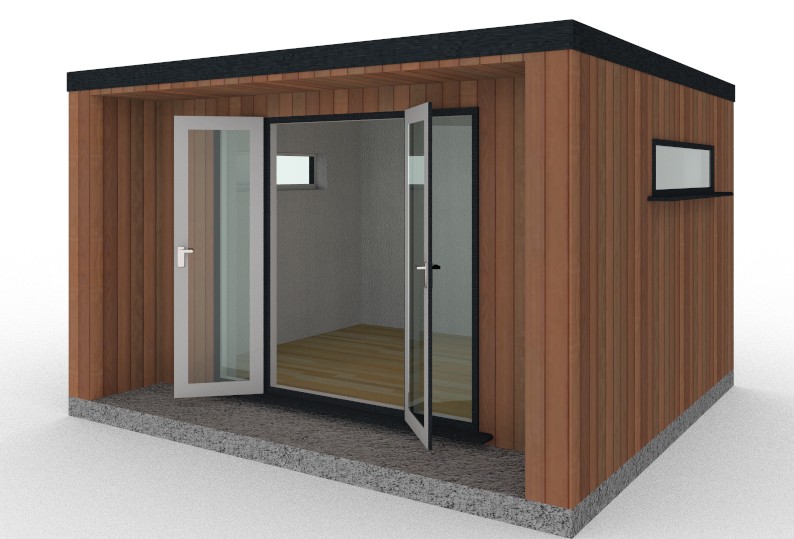

Walls & Ceiling Are Lined and Plastered, Laminate Flooring Is Installed

Installation Of Electrical Fittings Completes The Build

Build Process Slideshow

PLANNING PERMISSION

All Outdoor Lifestyle Innovations Garden Rooms are designed to comply with the General Permitted Development Order (England) 2015 and as such will not require Planning Permission in the majority of cases.

Any potential planning issues will be identified during the initial site visit and can be discussed with our on-staff planning expert

A quick assessment of any potential planning issues can be completed using our automated calculator below

WHATS INCLUDED

The following items are included as standard

Ground Works

Any ground work required to ensure the Garden Room can be constructed on flat and level ground

Concrete Base

A reinforced concrete base, with damp proofing, to ensure a solid platform to support the Garden Room

Timber

All framing built using C16 Construction Rated timbers

Outer walls lined with OSB Board

Canadian Cedar Cladding

Roof

EPDM roof covering with side trim (10 Year Guarantee)

Guttering

Guttering with downpipe installed to the rear of the building

Insulation

100mm Celotex™ insulation in all walls and ceiling

50mm Celotex™ insulation in floors

Doors & Windows

All doors and windows supplied are rated to current building code for housing and include Argon filled Double Glazing

Interior Walls & Ceiling

Interior walls and ceiling lined with 12.5mm Plaster Board and finished with a plaster coat

Walls and ceiling painted in white

Skirting Boards

Floor

Wood effect laminate flooring

Electrical

Connection to the closest available consumer unit using armored cable

Internal RCD protected consumer unit

Internal outlet sockets

Internal LED lighting with switch

External LED downlights to front of building with internal switch

External LED downlights in sofit with internal switch if appropriate

Certificate of electrical compliance issued
